Setting Up a Phono Cartridge

Setting Up a Phono Cartridge

Because it is a thing of beauty to witness and because the results make such a huge difference in sonics, I’d like to take you through the process of mounting, aligning, and optimizing a moving-coil phono cartridge the way an expert does it. That expert is my friend and TAS colleague Andre Jennings.

Although I am capable of handling several of these set-up chores on my own, I generally leave the fine-tuning to Andre. He’s had experience with just about every cartridge and tonearm currently on the market (as well as many that are no longer marketed), and has set up cartridges and tonearms for friends and colleagues throughout the Midwest and for manufacturers at trade shows. His expertise is, IMO, unrivaled.

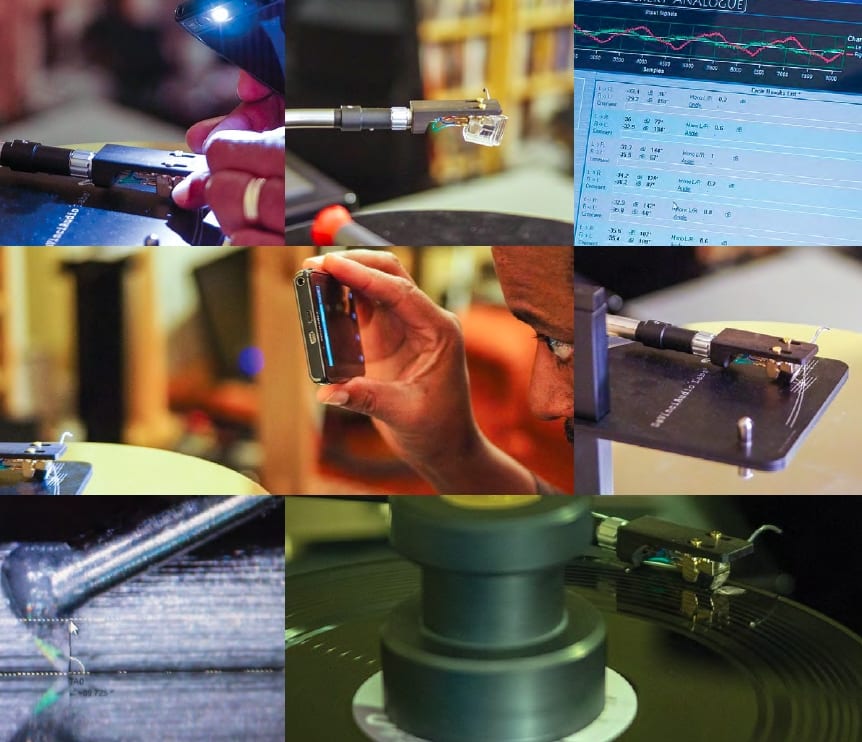

The photos I’ve taken of Andre’s work actually involve the setup of two different cartridges in two different tonearms—the Goldfinger Statement in the DaVinci Master Reference Virtu tonearm and the Ortofon MC Anna in the Kuzma 4Point tonearm.

Like old age, cartridge setup—done right—is not for sissies. It is an arduous, painstaking process that requires nerves of steel and infinite patience. If, like me, you tend towards clumsiness or near-panicky fits of pique when handling very small, very delicate items, you would be well-advised to leave cartridge setup to an expert like Andre—or to an analog maven of your acquaintance or a retailer with a good deal of experience in the field. The cartridges being installed here are anything but cheap—$8500 (Anna) to $15,000 (Statement)—and getting fed up and doing something careless or stupid while handling them can end up costing you a lot of money.

Andre begins, of course, by mounting the cartridge in the tonearm’s headshell—here the Goldfinger Statement in the DaVinci Audio Lab Master Reference Virtu. Unlike the headshell of DaVinci’s previous flagship Grandezza tonearm, the Virtu’s is removable, which makes attaching a cartridge to it a bit easier (although it also adds a potentially resonant “joint” to the structure of the ’arm). Obviously the width of the mounting screws has to be compatible with both the slots in the headshell and the screwholes in the cartridge, and the length of the screws has to be sufficient to clear the added height of the headshell, while still fastening firmly into the cartridge body. (Nowadays, most cartridges have screwholes tapped into their bodies—a big improvement over the so-called Golden Age of Vinyl, when cartridges only came with molded plastic loops on either side of their plastic chassis and had to be attached to the headshell with screws, washers, and nuts, adding difficulty to the mounting process and resonant mass to the entire setup.)

Before alignment Andre snugs the screws down but doesn’t fully tighten them, as the cartridge will need to be moved forward and back in the headshell and twisted slightly side-to-side to achieve proper alignment.

Step two is attaching the tonearm leads to the output pins at the back of the cartridge. Although I’m not showing you the process—just the result—this is (or, at least, can be) a tricky little step, depending on how handy you are. You have to use the right tool for this job, and fingers aren’t it. You’ll need tweezers or small needle-nose pliers to do it right—and you’ll still have to be careful! The stylus of a cartridge, like the Goldfinger Statement here illustrated, is completely unprotected by the cartridge body—sticking out in front of it like a tiny invitation to disaster. If you seek to gain leverage while attaching the clamps of the color-coded tonearm leads to the (usually) color-coded cartridge pins by putting a finger on the front or side of the cartridge, you may very well bump that stylus with some force if your finger slips, and, folks, take it from someone who knows: You do not want to hit the stylus of a Goldfinger Statement (or any cartridge, for that matter) with your finger. Keeping the stylus guard on the cartridge when attaching the leads is the safest procedure, and what Andre has done here.


If you’re attaching a cartridge to a tonearm for the first time or switching cartridges, you may find that the clamps at the ends of the tonearm leads are too tight or too loose to fit snugly on the cartridge pins. Don’t force anything! The clamps may need to be slightly enlarged or slightly narrowed prior to attachment. You can do the former by inserting a toothpick into the clamp, opening the gap up a wee bit; to close it down some, use your needle-nose pliers, but use those pliers gently and sparingly! The clamps at the end of tonearm leads can only stand a little bit of strain. If you pull them or twist them or abuse them repeatedly, chances are they will break off, making it necessary to solder them to the tonearm leads again (a job you don’t want to do).

Step three is setting VTF (vertical tracking force). You need to do this before alignment, but you don’t have to get VTF exactly right at this point—just in the ballpark of the manufacturer’s recommendation. You will need to check VTF again in any event after alignment and other adjustments have been made—and later by ear.

There are several digital stylus-force gauges on the market; if you’re heavily into analog I would recommend purchasing one of them. They are more precise than Shure’s mechanical gauge, although be aware that some of them are affected by a cartridge’s magnetic field. You can tell if you’ve got one of these if the VTF reading changes to any value other than 0.000 as you prepare to lower (or actually lower) the cartridge onto the gauge. If your meter does fluctuate as you position the cartridge above the gauge’s measuring platform, stop and press the TARE button. This should zero-out the meter, after which you can continue lowering the cartridge.

Step four is attaching an alignment jig to your turntable/ tonearm. Once again, there are many of these on the market from freebies on the Internet, to protractor-style jigs like the custom-made one from Dr. Feickert that comes with the DaVinci Virtu tonearm, to engraved-mirror ones from Wally Tractor, to the dedicated paper or plastic graphs and other devices invariably supplied with tonearms.

I’m not going to go into the science behind alignment. Suffice it to say, that a cartridge in a pivoted arm is only exactly in the right position (in perfect tangency with the groovewalls) at two points in its arc of travel. Everywhere else it is slightly out of perfect tangency. A straight-line-tracking tonearm, OTOH, is always in perfect tangency vis-à-vis the groovewalls. However, neither a pivoted nor a linear-tracking tonearm will be “right” if it is not properly aligned to begin with.

Basically, alignment is a two-part process: 1) setting overhang, and 2) aligning the stylus. The first is accomplished by moving the cartridge back and forth in the headshell (toward and away from the tonearm pivot point) so that the stylus fits precisely in the pinprick or crosshairs engraved on your protractor at one or two specified points in its arc of travel (or, with a straight-line tonearm, remains in the groove of your protractor through its entire radius of travel). Alignment is accomplished by twisting the cartridge body so that the stylus/cantilever assembly is perfectly “squared up” within the engraved rectangular grid surrounding the pinprick/crosshairs on your protractor (while the stylus tip is sitting in that pinprick), so that the stylus is not just sitting in precisely the right point(s) for proper overhang but is aligned so that it is squarely in that point and not at an angle to it. You can see Andre adjusting alignment in the photograph; he is using a flashlight in his cellphone to illuminate the cartridge and the jig.

Most modern cartridge bodies are not squared off. Because of this, Andre always aligns the stylus/cantilever assembly instead of the body of the cartridge. The most precise approach is to try to align the cantilever to the sightline running along the pinprick or crosshairs of the alignment jig. Basically this involves setting the stylus in the pinprick or crosshairs of the alignment grid and, from the front of the cartridge, following the sightline of the alignment grid running alongside or below the cantilever. Adjust (twist) the cartridge body in order to get the cantilever to lineup with this sightline. (This is easier to do, and can be more precise, with mirrored protractors that allow the reflection of both the cantilever and sightline to both be seen from the proper viewing angle.)


Precision cartridge alignment can be a tedious, time-consuming task, and it takes someone with a steady hand, a keen eye, a good deal of previous experience, and the patience of Job to do it accurately, safely, and thoroughly.

Step five is setting stylus rake angle (SRA)—a variant of what we used to call setting VTA (vertical tracking angle) back in the day. ’Course back in the day we adjusted VTA solely by ear. Received wisdom was that it should generally be set so that the tonearm was parallel to or slightly below parallel to the LP’s surface. In practice, this always seemed to give you a richer, fuller sound with less treble bite, and in those days reducing treble bite was a good thing given the state of tonearms, moving-coil cartridges, and LPs (particularly Mercury LPs).

However, it turns out this formula, for all its salubrious effects in listening, was technically incorrect. In March 1981, Jon M. Risch and Bruce R. Maier published an article in Audio magazine titled “More Than One Vertical Tracking Angle,” in which they pointed out that, in order to play back an LP properly, in theory the playback angle of the stylus ought to be the same as the angle of the stylus in the cutting head, and their research determined that the cutting angle on most of the LPs listened to was typically 92o (not the 90o or less that we had always assumed was right).

The article didn’t have much effect until Michael Fremer of Stereophile, bless his analog heart, rediscovered it. Since then there has been a bit of a mini-revolution in cartridge setup, in which measuring SRA and adjusting VTA to get SRA theoretically right—or close to right—have come to the fore.

The process of measuring SRA is not for the weak of spirit. To do it you must have a digital microscopic camera, a stand to put it on, a computer with a good deal of processing power, and, as is the case with every aspect of cartridge setup, a dedicated tweaker’s spirit, nerve, and patience.

Pictured on the previous page is one of Andre’s digital microscopic cameras, sitting beside an Acoustic Signature Ascona turntable with a Kuzma 4Point tonearm in which an Ortofon MC Anna has been mounted. The microscopic camera is a USB device that plugs into a laptop computer, whose screen you will see shortly. What it does—once you get the stylus in precise focus (a process so demanding that I literally couldn’t stand to do it on my own)—is take a close-up picture, like the one below this paragraph, of the stylus sitting on a perfectly flat surface with, in this case, a cylinder of pencil lead, which also must be focused, sitting behind it to provide a flat horizon line.

Software, which comes with the camera, allows you to adjust two perpendicular lines so that one of them runs straight through the shank of the stylus to the contact patch at its tip (In case you’re wondering why the perpendicular line in the photo above is not running straight through the stylus’ shank to the contact patch, this is because, unlike typical moving-coil styli, the tip of the Ortofon Replicant 100 stylus of the MC Anna is not centered below the vertical shank of the diamond. The geometry of this Giger-type stylus is asymmetrical; thus, measurements are not taken down the center of the stylus, as would normally be the case. Instead the rear edge of the stylus provides the reference, for which see the photo below.)

Once the perpendicular lines of the measuring software are properly adjusted, they are then rotated from a position perpendicular to the record surface to a position parallel to the record surface. The computer then calculates the stylus rake angle (symbolized by the little white curve running from the black line at the back edge of the stylus to the flat surface the stylus is sitting on). In this case the measured SRA was 89.725o.

To adjust SRA for theoretical correctness, you then raise (or lower, depending on your reading) VTA until the SRA (which must be measured again—often repeatedly) is somewhere between 91o and 92o. (The slop built into this setting allows you to season by ear and by typical record thickness.) In the screenshot above, you see that SRA has been adjusted, by raising the back of the tonearm, to a closer-to-theoretically-correct 91.477o (which is where I liked it best).


The upshot of this SRA business is that the received wisdom of the past was wrong, or at least incomplete. To get theoretically correct SRA, a tonearm could (surprisingly) be raised above parallel to the record surface (sometimes a good deal above parallel), depending on the native SRA of the stylus (which, in Andre’s considerable experience, can range from as low as 86o to as high as 97o—and can also differ substantially from sample to sample of the same cartridge). Of course, your ears must be the final judges in this matter (as in all things audio). My own experience has been that a setting of precisely 92o doesn’t always “sound” best. (Andre agrees and typically aims for an SRA of 91.3o to 92o, the exact setting being adjusted by ear.) Whatever SRA you ultimately decide on, be assured that getting rake angle right (or right for you) has profound effects on every aspect of the presentation—from overall balance to resolution, dynamics, staging, and imaging.

Step six of Andre’s setup is adjusting azimuth. There has been a lot of nonsense written about azimuth—some of it, alas, in the pages of TAS. Trust me: Azimuth matters, and getting it right doesn’t just confer a theoretical advantage; you can readily hear the difference (as you can with SRA).

Unfortunately, getting it right isn’t easy. Once again, you’re going to need a computer and, to do it properly, Dr. Feickert’s wonderful software program, Adjust+.

Adjust+ is actually a suite of programs that permits the precise measurement of all sorts of things, from turntable speed to (as you will see) harmonic distortion. But its foremost function is setting azimuth with high precision.

To use it you have to have a test LP (one comes with the software, although Andre prefers to use The Ultimate Analog Test LP from Analogue Productions). Here’s the drill: Before playing back 1kHz (mono) reference tones for the left and right channel (tracks one, two, and three of TUATLP), you route the signal from the outputs of your phonostage via a (supplied) RCA-to-3.5mm-jack cable to your computer’s mike input. (Andre actually uses a sophisticated outboard 3.5mm-to-USB converter.) Adjust+ then measures (in real time) the mono output of both channels, then the left and right channels of your cartridge, calculating average left-to-right and right-to-left crosstalk in dBs.

Without azimuth adjustment, neither Andre nor I have ever seen a cartridge that measures the same (or even close to the same) crosstalk in both the left and right channels. At the top of the next column, you can see the initial test we ran of the Goldfinger Statement cartridge, adjusted by eye and mirror so that it “looked” as if azimuth were correct.

Crosstalk in this “eye-balled” setup measured -33.4dB L-to-R and -29.2dB R-to-L. Now, folks, that is better than a 4dB difference in crosstalk—from what “looked” like a fairly correct alignment! It should go without saying that imaging and soundstaging would be audibly affected by this setup, and so would timbre.

After considerable trial-and-error (unlike the marvy Kuzma 4Point, the DaVinci Virtu tonearm does not have a geared mechanism to adjust azimuth—you just loosen a set-screw and twist), Andre grew closer and closer to getting optimum crosstalk (equal channel separation and phase angle) from both channels.


Like everything else I’ve written about in this article, azimuth adjustment can be a tedious process, but the results are certainly worth the effort. In the end this is the reading Andre got by means of Adjust+ (and his own inexhaustible patience):

You may not be able to see this on the page, but the final crosstalk measurements show -35.5dB L-to-R and -35.4dB R-to-L. Now, these aren’t just sterling numbers (although they are that); the results are instantly and dramatically audible in playback.

(Just as a side note, after mounting, connection, VTF, alignment, SRA, and azimuth, Andre also measured THD via Adjust+ with the Goldfinger Statement in the Da Vinci Virtu tonearm and came up with the best results he’s ever seen from any cartridge and tonearm: 0.21% in the left channel and 0.29% in the right.)

Throughout all of these procedures, each parameter is rechecked as necessary to ensure that subsequent adjustments haven’t affected the others. And once again and above all other considerations, your ears should be the final arbiters when fine-tuning the setup.

Although it takes considerable expertise, getting everything just right in cartridge setup—as Andre does—has a tremendous effect on the overall sound. Those who dismiss analog as a form of nostalgia simply haven’t ever heard a great turntable, tonearm, and cartridge set up by a genuine expert. Thanks to Andre I have (on many occasions), and I’m here to tell you that, IMO, hi-fi playback doesn’t get better than this.

By Jonathan Valin

I’ve been a creative writer for most of life. Throughout the 80s and 90s, I wrote eleven novels and many stories—some of which were nominated for (and won) prizes, one of which was made into a not-very-good movie by Paramount, and all of which are still available hardbound and via download on Amazon. At the same time I taught creative writing at a couple of universities and worked brief stints in Hollywood. It looked as if teaching and writing more novels, stories, reviews, and scripts was going to be my life. Then HP called me up out of the blue, and everything changed. I’ve told this story several times, but it’s worth repeating because the second half of my life hinged on it. I’d been an audiophile since I was in my mid-teens, and did all the things a young audiophile did back then, buying what I could afford (mainly on the used market), hanging with audiophile friends almost exclusively, and poring over J. Gordon Holt’s Stereophile and Harry Pearson’s Absolute Sound. Come the early 90s, I took a year and a half off from writing my next novel and, music lover that I was, researched and wrote a book (now out of print) about my favorite classical records on the RCA label. Somehow Harry found out about that book (The RCA Bible), got my phone number (which was unlisted, so to this day I don’t know how he unearthed it), and called. Since I’d been reading him since I was a kid, I was shocked. “I feel like I’m talking to God,” I told him. “No,” said he, in that deep rumbling voice of his, “God is talking to you.” I laughed, of course. But in a way it worked out to be true, since from almost that moment forward I’ve devoted my life to writing about audio and music—first for Harry at TAS, then for Fi (the magazine I founded alongside Wayne Garcia), and in the new millennium at TAS again, when HP hired me back after Fi folded. It’s been an odd and, for the most part, serendipitous career, in which things have simply come my way, like Harry’s phone call, without me planning for them. For better and worse I’ve just gone with them on instinct and my talent to spin words, which is as close to being musical as I come.
